Product Description:

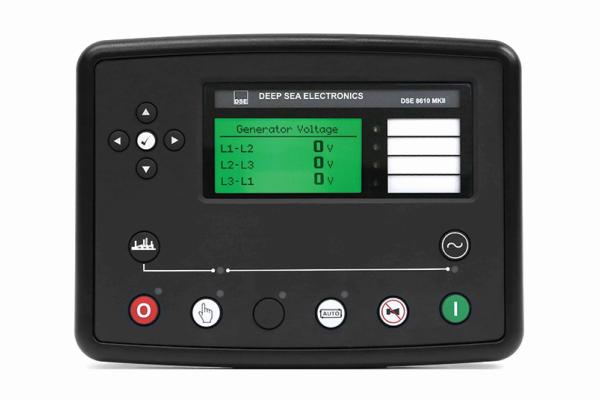

The DSE8610 MKII represents the latest in complex load sharing & synchronising control technology. Designed to handle the most complex grid type generator applications the DSE8610 MKII control module is packed with multiple features and benefits that are unrivalled across the generator control industry.
Technical Parameters:
OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3")
WEIGHT
0.88kg
PRODUCT VARIANTS
8610-02 - 8610 MKII Synchronising & Load Sharing Control Module (Ct, Rtc)
Applications:
-Built-in powerful PLC functions
- MSC redundancy function, the MSC of the DSE86xx controller is connected through a closed loop
- 4 flexibly set analog inputs, which can be set as voltage, current or resistance sensors
-Two RS485 ports can connect EFI engine and BMS system
-Three CAN ports: DSENet, ECU, and MSC
-Supports parallel and load distribution of up to 32 units
-Custom Digital Input/Output (12/8)
-Uncharged busbar detection (that is, switch on first and then start), multiple units quickly start with load
-Multiple remote communication ports (RS232,RS485, Ethernet), all ports can be used at the same time
-active and reactive power distribution
- 250 event records for easy viewing of historical failures
-Hierarchical load rejection and virtual load output
-power monitoring (kWh, kVAr, kvAh, kVArh), reverse power protection, overload protection
-Data record (connected to a U disk) to record the current and historical status information.
-Free DSE Software
-EFI engine supporting national 4 emission standards
added features
-Large memory
-Optional low-temperature version
-Neutral Point Voltage Offset
-Frequency and Voltage Control
-higher measurement accuracy
-Frequency Change Rate and Vector Angle Judgment
-Sound alarm
-Customizable timer and alarm
-Supports the Modbus RTU/TCP protocol.
-You can set 3 maintenance tips.
-Automatically balance engine running time
-Flexible Sensor Input
-Multiple scheduled boot options
-Bus failure detection
-Supports different types of EFI engines
-Control the start and stop of the unit by sending messages via mobile phone
-Fuel Monitoring
- Modem diagnosis
-Built-in real-time clock
Packing and Shipping:
Product Packaging: The Diesel Generator Spare Parts are carefully packaged in durable cardboard boxes with foam padding to ensure safe transportation and storage.
Shipping: Orders for the Diesel Generator Spare Parts will be shipped via a reliable courier service to ensure prompt delivery to your designated address. The package will be securely sealed and labeled for easy identification.
